1011HPSMS-1920HPSHO

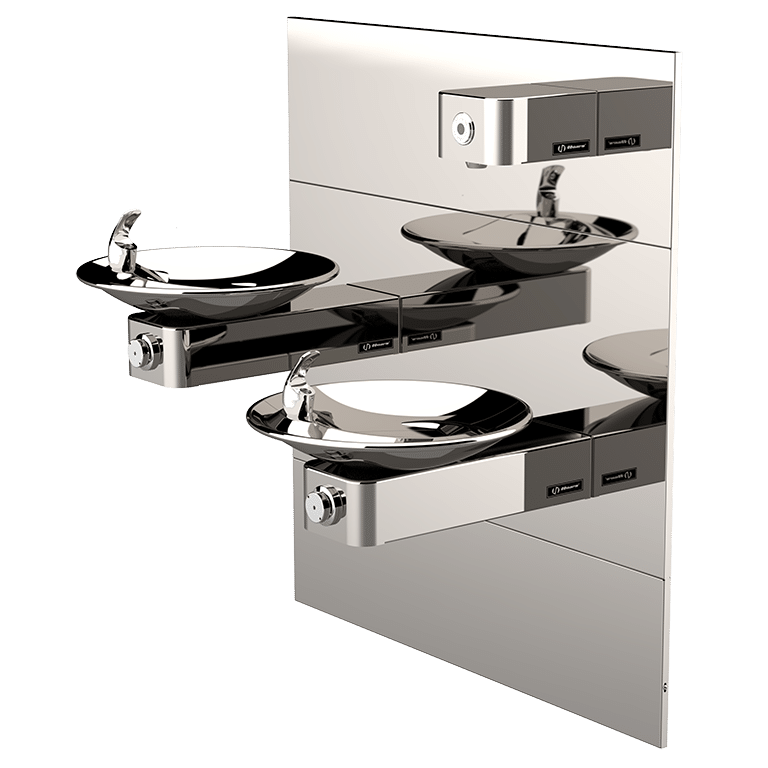

ADA Vandal-Resistant Polished Dual Fountain w/Motion-Activated Bottle Filler and Mounting System

Model 1011HPSMS-1920HPSHO, Hi-Lo ADA wall-mounted vandal-resistant, polished dual fountain and touchless bottle filler, access panels and in-wall mounting system. (For mounting bottle filler, see options below) FOR INDOOR USE ONLY
Contact Us for a Custom Solution

Required Parts Sold Separately
View All Resources

Specifications

Model 1011HPSMS-1920HPSHO Hi-Lo ADA wall-mounted vandal-resistant drinking fountain and motion activated bottle filler shall include dual 18-gauge Type 304 polished Stainless Steel basins with integral swirl design, 14 gauge Type 304 Stainless Steel wall brackets and bottle filler bracket, in-wall mounting frame with lower access panel allowing for front access of P-trap and stop, 100% lead-free waterways, sensor operated solenoid valve with 30-second obstruction time-out on the bottle filler, and vandal-resistant push-button operated stainless-steel valve with front-accessible cartridge and flow adjustment on the fountain, polished chrome plated brass vandal resistant bubbler heads with integral laminar anti-squirt flow, 1gpm (3.78L) laminar flow bottle filler, chrome-plated brass vandal-resistant waste strainers, high and low fountain mounting levels, stainless steel satin finish back panels, and 1-1/4” O.D. (3.2 cm) waste pipes.
