Home / Products / 1011HPSHO-1920HPSHO – ADA Vandal-Resistant Motion-Activated/Push Button Dual Fountain w/Bottle Filler

1011HPSHO-1920HPSHO

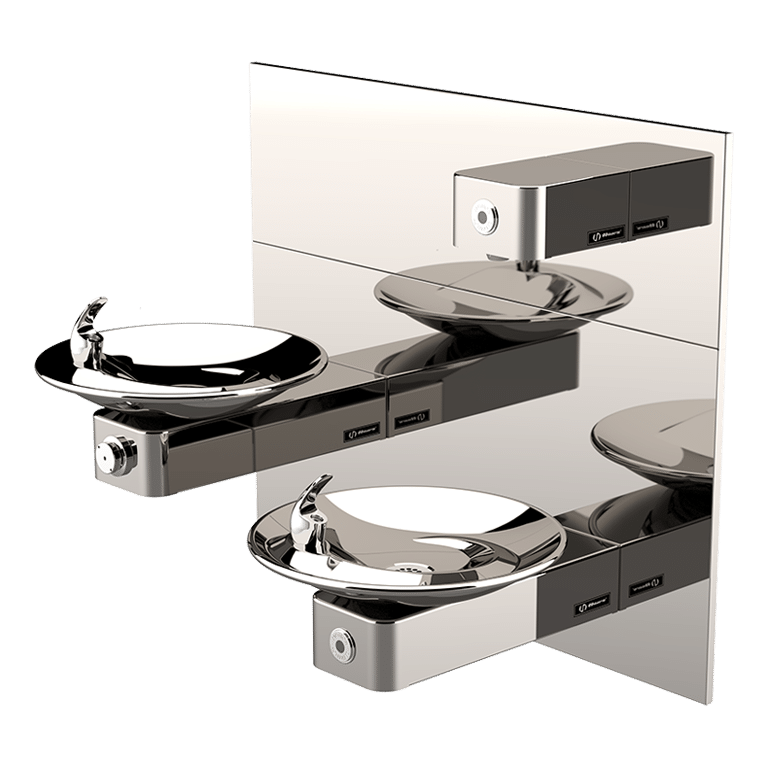

ADA Vandal-Resistant Motion-Activated/Push Button Dual Fountain w/Bottle Filler

Model 1011HPSHO-1920HPSHO, Hi-Lo ADA, wall mounted vandal-resistant, combination touchless/push button dual drinking fountain and bottle filler. FOR INDOOR USE ONLY The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below)
Contact Us for a Custom Solution

Required Parts Sold Separately

Fountain with Bottle Filler Spec Sheet

Operational / Maintenance Manual

MasterSpec® Files

Limited Warranty

Specifications

Model 1011HPSHO-1920HPSHO Hi-Lo ADA wall mounted vandal-resistant combination motion activated/push button drinking fountain and bottle filler shall include dual 18 gauge Type 304 high-polished stainless steel basins with integral swirl design, 14 gauge Type 304 high-polished stainless steel wall brackets and bottle filler bracket, 100% lead-free waterways, sensor operated solenoid valves with 30-second obstruction time-out on the bottle filler and on one side of the fountain, and vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment on the other, 1 gpm (3.78 L) bottle filler laminar flow, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, polished stainless steel back panels, high and low fountain mounting levels, and 1-1/4" O.D. (3.2 cm) waste pipes. (P-trap and stop require rear access) The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.

ADA Vandal-Resistant Motion-Activated/Push Button Dual Fountain w/Bottle Filler

The Haws 1011HPSHO-1920HPSHO ADA Hi-Lo high-polished stainless steel vandal-resistant drinking fountain and bottle filler incorporates sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation on the bottle filler and on one side of the fountain, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the other. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Touchless operation on one side for safety and peace of mind
Vandal resistant components include bubblers, bowls, button, drains and bottom plates
30-second obstruction time-out to reduce tampering of sensor
18 gauge Type 304 high-polished stainless steel bowl assemblies mounted on 14 gauge Type 304 high-polished stainless steel wall brackets
100% lead-free waterways
1 gpm (3.78 L) bottle filler laminar flow
Polished chrome-plated brass bubbler heads with integral laminar anti-squirt flow eliminate water splash
Easy maintenance with front access to push button valve adjustment and cartridge replacement
Beautiful polished finish resists stains and corrosion
"Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights
The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See options below)

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
